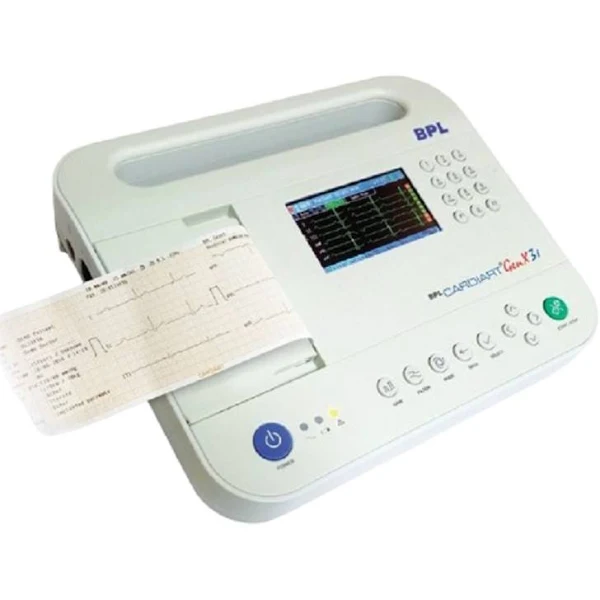

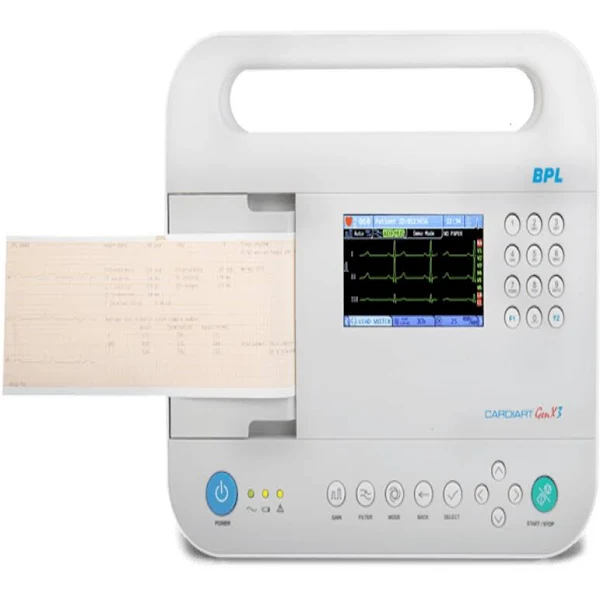

ECG Machine 3 Channel BPL GenX 3is 6208

Description

The MEDXP Introduces BPL GenX 3is 3 Channel ECG Machine, Features Three-channel ECG recording with trace darkness control Wide 4.3 inch 65K Color TFT display Glasgow ECG Interpretation Algorithm 12-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000 Hz sampling frequency Alphanumeric keypad with soft silicone keys Full disclosure view of ECG analysis on display Internal storage of up to 250 ECGs that USB can enlarge Rechargeable Li battery for energy-efficient operation Connectivity: supports USB printer, optional FTP, export selected record(s) in HL7 format Optional: Real-time ECG transfer to PC through USB Product Specification Model BPL Cardiart GenX3 CMRR Greater than 90dB at 50Hz Time Constant Greater than 3.2 seconds Weight Approx. 2 Kgs Power Consumption Less than 60 VA Brand BPL Dimension Approx. 300mm x 260mm x 80 mm (length x width x height) Power Supply 100-240 V AC; 50/60 Hz Display 4.3 inch Color TFT LCD with 480 x 272 pixel resolution; 65k Color Input Impedance Greater than 10 M ohm at 10 Hz Mains Protection Fuse T2A 250 V Paper Transport Speed 5 mm/ sec or 12.5 mm/ sec or 25mm/ sec or 50 mm/ sec Thermal Paper In rolls Height 80mm,Length 20m,gridded Keyboard Silicone Rubber keypad with 23 keys & 4 LED indicators Startup Time Greater than 4 seconds Record Storage 250 ECGs in internal memory ECG Analysis Sampling Rate 500 samples/ second (sps) Operating Temperature +10 to +40 degree C Relative Humidity Upto 95% RH Non-condensing ECG Acquisition 12 bits,1000 samples/ sec/ channel Battery Rechargeable Lithium battery 11.1V dc,3000mAh Storage Temperature Or Transport Temperature -10 degree C to 50 degree C ADC Resolution 2.55 microV/LSB Print Channel 3 Channel + 1 Rhythm or 3 Channel,Manual 3 Channel Frequency Response 0.05 Hz to 150 Hz (-3dB) without Mains /Muscle and ADF Filters Country Of Origin – India Warranty – 3 Years In The Box ECG machine ECG Cable Bulb Electrode Clamp Electrode Gel Bottle Power Cable User Mannual.
